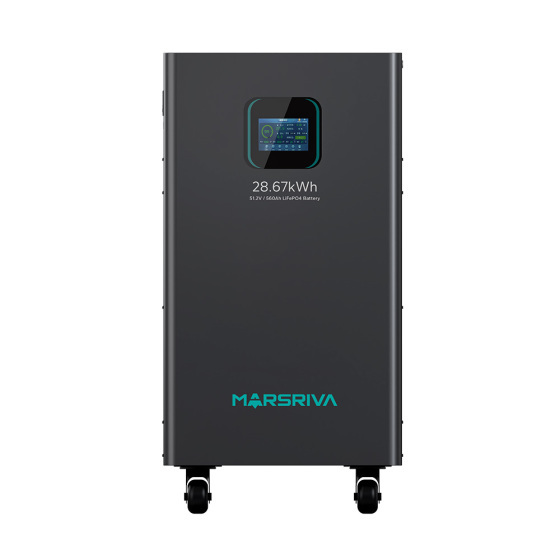

| Model | MR-LFP48-560-FSD | |||
| Battery Type | REPT LiFePO4 Battery (Grade A) | |||
| Nominal Voltage | 51.2V | |||
| Capacity | 560Ah | |||
| Storage Capacity | 28.67kWh | |||
| Battery Internal Resistance | ≤10mΩ | |||
| Cycle Life | ≥6000 @25°C, 80% EOL | |||
| Design Life | ≥10 years | |||
| Max. Charging Current | 200A | |||
| Max. Discharging Current | 200A | |||
| Peak Charging Current | 215A / 2s | |||
| Peak Discharging Current | 215A / 2s | |||
| Communication | RS485, CAN | |||
| Number of Parallel Connections | Up to 15 units | |||
| Charging Temperature | 0℃ to 50℃ | |||
| Discharge Temperature | -15℃ to 50℃ | |||
| Storage Temperature | -30℃ to 35℃ | |||
| Humidity | 5% – 95% | |||
| Dimension (L*W*H) | 520 × 480 × 1005mm | |||
| Weight | Net Weight: 228kg (Gross Weight: 246kg) | |||
