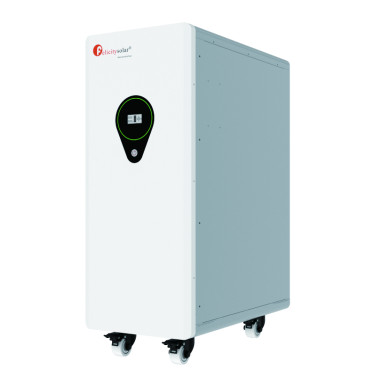

Felicity FLA48500, 500Ah 25kw 48V lithium battery

Model
Usable Capacity
Battery Type
Nominal Voltage
Operating Voltage
Recommend Charge/Discharge Current[1]
Recommend Charge/Discharge Power[1]
Maximum Charge/Discharge Current(15s)
Maximum Charge/Discharge Power(15s)
Depth of Discharge(DOD)
Scalability
Communication
Ingress Protection
Cycle Life[2]
Charging Temperature Range
FLA48500
Protection
Warranty
Discharging Temperature Range
Installation
25kWh
LiFePO4
51.2V
44.8-57.6V
≤200A
≤10000W
300A
10000W
Up to 15 units in parallel
CAN&RS485
IP21
≥6000 Cycles
0~55℃
Built-in smart BMS, Fuse
5 Years
-20~55℃
Wall-Mounted / Floor-Mounted
Display LCD+LED
Product Dimension(MM)
Package Dimension(MM)
Gross Weight(KG)
783*450*274MM
900*570*450MM
117.2±2KG
Net Weight(KG) 92±2KG
[1] Recommend charge/discharge current/power is affected by temperature and SOC.
[2] Test conditions: 0.2C Charging/Discharging @25℃,80% DOD
