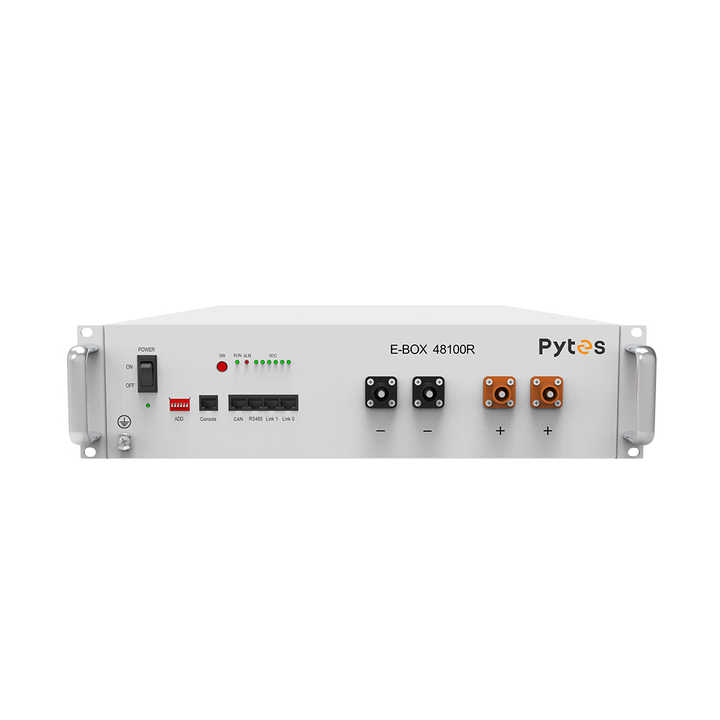

Euro E-Box 100Ah 48V Lithium Battery

Technical specifications:
48100R
Chemistry LFP (Lithium home battery)
Nominal Voltage 51.2V
Voltage range 47.5V-57.6V
Rated Capacity 100Ah
Rated Energy 5.12kWh
Unit Dimension L440mm* B620mm* H117mm (2.6U)
Unit Weight 51kg
Standard Charge Current 50A
Maximum charging current 50A
Standard Discharge 50A
Maximum discharge rate 50A
Roundtrip efficiency ≥95%
Communication protocol RS232, RS485, CAN
Cycle life ≥6000cycles
Calendar life ≥10years
Operating Temperature -10°C~50°C
Connection style Parallel
Storage Temperature within 1 month: -20~55°C, 1-3months: 0~35°C, 3-12months: 20~25°C
Control panel

Mounting on the wall can be done individually with supplied brackets or in pairs with the chic homebox

10 years warranty
