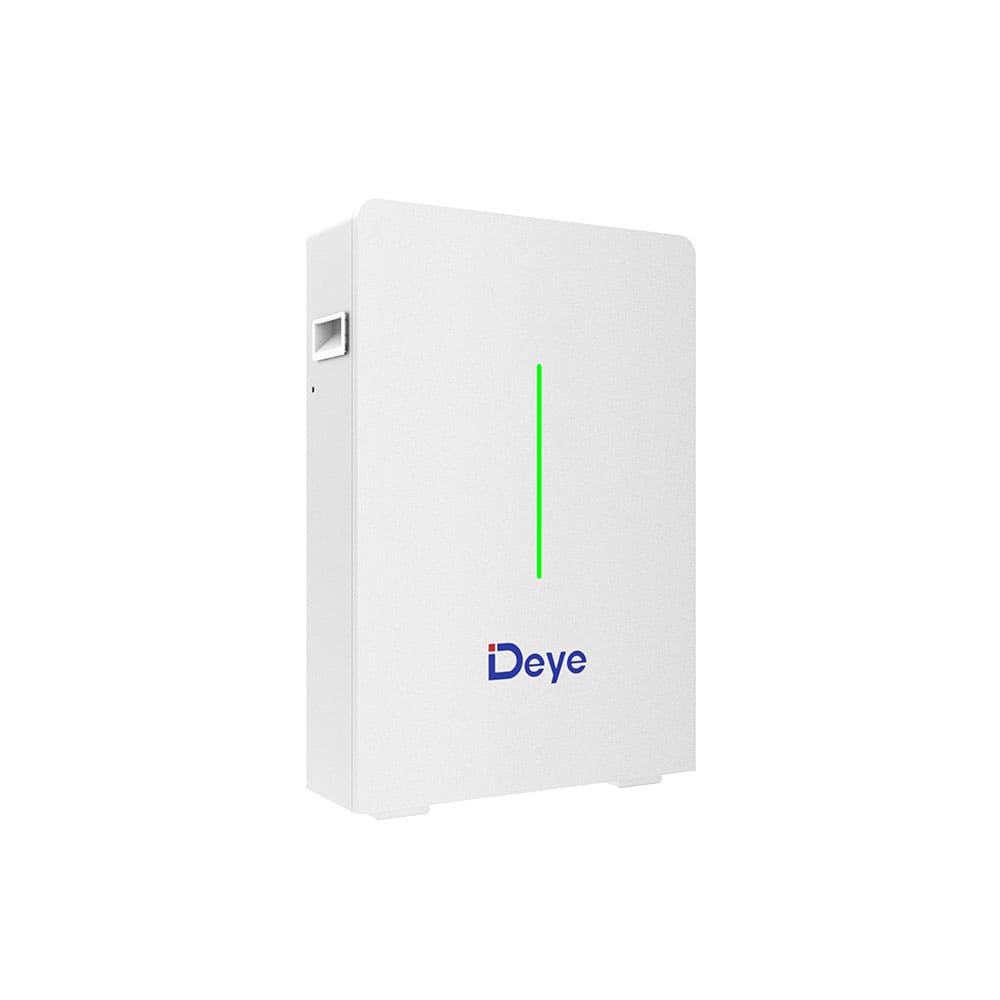

Deye RW-F10.6, 208Ah 10.6kw 48V lithium battery

Key Features:

1. Safety: The RW-F10.6 utilizes LFP chemistry, ensuring a safer battery that is non-toxic and pollution-free.
2. High Performance: With a maximum support of 1C charge and 1.2C discharge, this battery can deliver up to 6000 cycles at 90% DOD and comes with a 10-year standard warranty.
3. Reliability: The built-in Intelligent BMS provides complete protection, while natural cooling and a wide temperature range (-20°C to 55°C) ensure optimal performance in various conditions.
4. Flexibility: The modular design allows for easy expansion, with a maximum of 32 units in parallel, providing up to 340 kWh of capacity.
5. Convenience: The battery modules feature auto-networking (no DIP switch code), easy maintenance, and support for Deye remote monitoring and upgrades.
6. Eco-Friendly: Constructed with environmental protection materials, the RW-F10.6 is non-toxic and pollution-free.
7. Versatile Installation: The flat design allows for both wall-mounted (with Wall Bracket) and floor-standing (with removable base) installations, saving valuable space.

Specifications:

• Battery Chemistry: LiFePO4
• Capacity: 208 Ah
• Nominal Voltage: 51.2 V
• Nominal Energy: 10.64 kWh
• Usable Energy: 9.58 kWh
• Dimensions: 600 x 750 x 200 mm (without hanging board)
• Weight: Approximately 99 kg
• IP Rating: IP20
• Cycle Life: ≥ 6000 (25°C ± 2°C, 0.5C/1C, 90% DOD, 70% EOL)
