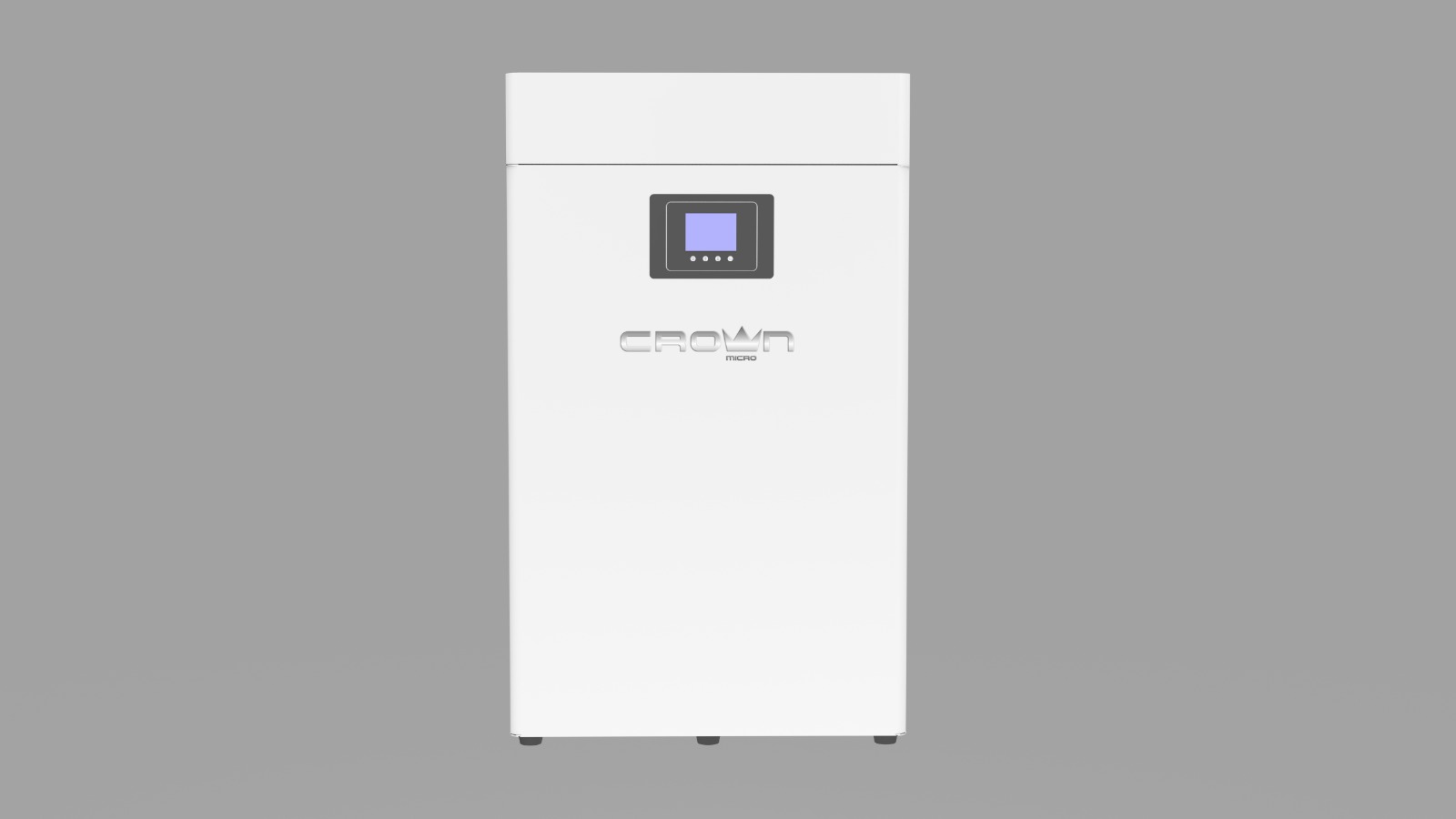

Crown CMLB-51-200- WM, 200Ah 48V lithium battery wall mounted

The battery module consists of single LFP cells, wire, BMS and container.
● Packed with high performance LFP single cell, long life, safety and wide temperature range
● High energy density, small size, light weight, no pollution
● Packing with single cell container, fire retardant wire and laser welding, stable and safe
● Built-in BMS, with battery voltage, current, temperature and health management
● LED indicate the battery SOC and operating status
● LCD Screen display the battery voltage, current, temp.,SOC detail information
● Support communicate with solar inverter bu CAN or RS485
● Update software by RS485 port
● Flexible customization of dimensions

Item Specification Conditions
Nominal
Voltage 51.2V
25℃,0.2C
Capacity 200Ah
Module weight 88.7kg ±1kg
Dimensions(W*D*H), mm 455*750*230 ±2mm
Operating
parameters
Charging Voltage 56.0V~57.0V
Discharging Voltage 44.8V
Charging current ax constant charge: 200A Recommended 100A
Discharging current ax constant charge: 200A
Temperature
Charge range 0℃~50℃
Discharge range -20℃~55℃
Storage range -20℃~55℃
BMS Built-in BMS Voltage, current, temperature
management & cell balance
RS485,CAN
communication
